Components Tested Database

Explore our new and growing list of components from manufacturers who elect to publish their test results online. We are inviting our customers who have performed component testing at WHA to consider publishing their tested components and adding to this list.

  • Reset

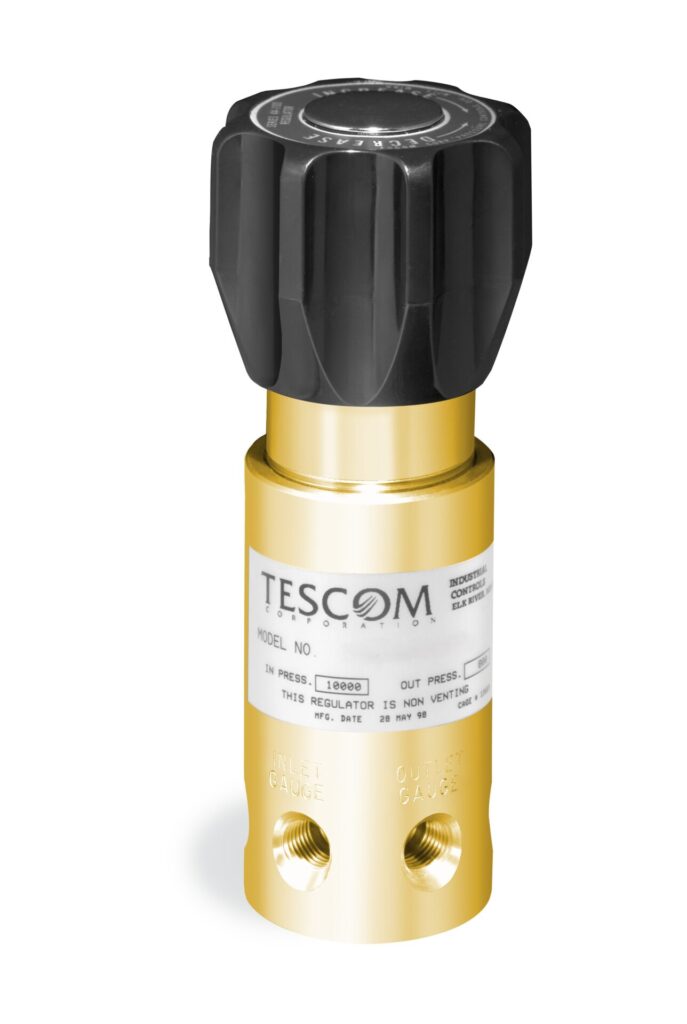

Manifold/Industrial Regulator, TESCOM

44-1116-24-219 | 1/4" FNPT

MWP

6,000 psig

Test Type

Oxygen Pressure Surge

Test Pressure

7,200 psig

Test Standard

ISO 7291 (2010)

Manifold/Industrial Regulator, TESCOM

MA-2 | 1/4" NPT

MWP

3,000 psig

Test Type

Oxygen Pressure Surge

Test Pressure

3,600 psig

Test Standard

CGA E-4 (1994)

Industrial Valve, TESCOM

VAC1CV9A9B9-017 | 1/4" FNPT

MWP

3,500 psig

Test Type

Oxygen Pressure Surge

Test Pressure

4,200 psig

Test Standard

ISO 10524-2

Manifold/Industrial Regulator, TESCOM

BB-71PL1KVA2-001 | 1/4" FNPT

MWP

3,000 psig

Test Type

Promoted Ignition

Test Pressure

3,000 psig

Test Standard

ASTM PS 127-00 (Superseded by G175)

Manifold/Industrial Regulator, TESCOM

44-1116-24-352 | 1/4" FNPT

MWP

6,000 psig

Test Type

Oxygen Pressure Surge

Promoted Ignition

Test Pressure

7,200 psig

6,000 psig

Test Standard

ISO 7291 (2010)

ASTM G175 Phase 2

Manifold/Industrial Regulator, TESCOM

44-1313-2081-357 | 1/2" FNPT

MWP

3,750 psig

Test Type

Oxygen Pressure Surge

Promoted Ignition

Test Pressure

4,500 psig

6,000 psig

Test Standard

ASTM G175 Phase 2

ISO 7291 (2010)

Manifold/Industrial Regulator, TESCOM

44-2212-241-1178 | 1/4" FNPT

MWP

4,500 psig

Test Type

Oxygen Pressure Surge

Promoted Ignition

Test Pressure

5,400 psig

3,500 psig

Test Standard

ISO 7291 (2010)

ASTM G175 Phase 2

Manifold/Industrial Regulator, TESCOM

44-3413S24-555 | 1/4" FNPT

MWP

3,500 psig

Test Type

Oxygen Pressure Surge

Promoted Ignition

Test Pressure

4,200 psig

3,500 psig

Test Standard

ISO 7291 (2010)

ASTM G175 Phase 2

Cylinder Valve, Eurotre S.r.l.

VB1_011_UO | M12x1.5

MWP

1,680 psig

Test Type

Oxygen Pressure Surge

Test Pressure

180 bar

Test Standard

ISO 10297 (2024), Annex C

Medical Regulator, J. G. Moriya

200.417 | CGA 540

MWP

2,900 psig

Test Type

Oxygen Pressure Surge

Promoted Ignition

Test Pressure

3,480 psig

2,900 psig

Test Standard

ASTM G175 Phase 1

ASTM G175 Phase 2

Pressure Sensor, Shearwater Research, Inc.

Swift, 17001-XX | SAE 4

MWP

4,350 pisg

Test Type

Oxygen Pressure Surge

Test Pressure

5,220 psig

Test Standard

EN 13949 (2003)

Filling Connector, FasTest, Inc.

G540041SRB1 | CGA 540

MWP

3,600 psig

Test Type

Oxygen Pressure Surge

Test Pressure

4,320 psig

Test Standard

ISO 21969

Swivels, FasTest, Inc.

GS041042B | 1/4" FNPT

MWP

3,600 psig

Test Type

Oxygen Pressure Surge

Test Pressure

3,600 psig

Test Standard

ISO 21969

Medical Regulator, Acare Technology Co., Ltd.

VST-317 | CGA 870

MWP

3,000 psig

Test Type

Oxygen Pressure Surge

Test Pressure

3,600 psig

Test Standard

ASTM G175 Phase 1

Medical Regulator, Acare Technology Co., Ltd.

VST-305 | CGA 870 | NA

MWP

NA

Test Type

Oxygen Pressure Surge

Promoted Ignition

Test Pressure

3,600 psig

3,000

Test Standard

ASTM G175 Phase 1

ASTM G175 Phase 2

Filling Connector, FasTest, Inc.

Part # G5400411BHMV | 1/4" MNPT

MWP

3,000 psig

Test Type

Oxygen Pressure Surge

Test Pressure

3,300 psig

Test Standard

ISO 21969

Filling Connector, FasTest, Inc.

Part # G5400411BHM | 1/4" MNPT

MWP

3,000 psig

Test Type

Oxygen Pressure Surge

Test Pressure

3,300 psig

Test Standard

ISO 21969

Industrial Valve, Admiral Valve / CPV

Part # 480-4-P-OXNB-VC | 3/4" O-SEAL

MWP

6,000 psig

Test Type

Oxygen Pressure Surge

Test Pressure

7,200 psig

Test Standard

ISO 10297 (2014), Annex C

Industrial Master Valve, Admiral Valve / CPV

Drawing #GSB-G-4F | 1/2" FNPT

MWP

6,000 psig

Test Type

Oxygen Pressure Surge

Test Pressure

7,200 psig

Test Standard

ISO 10297 (2014), Annex C and ISO 7291 (2010)
